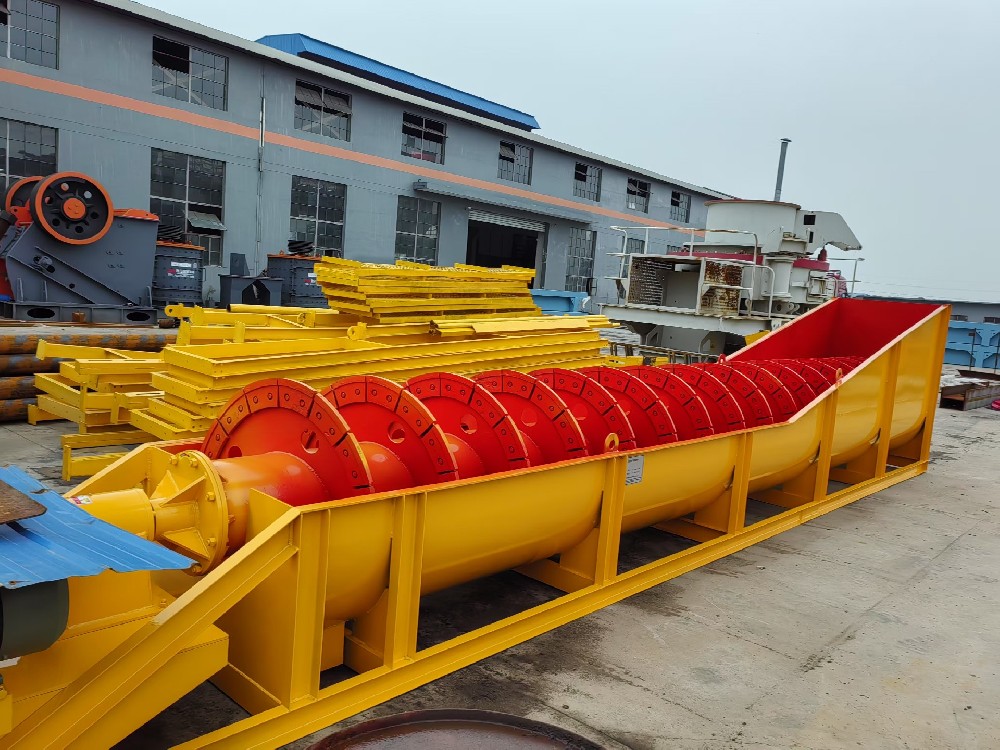

Good efficiency limestone washing machines spiral Washer delivery to Trinidad and Tobago
Raw materials: More than 120 kinds of ore materials such as limestone, granite, basalt, Riverstone, and rocks.
Raw materials: More than 120 kinds of ore materials such as limestone, granite, basalt, Riverstone, and rocks.
limestone washing machines spiral Washer application

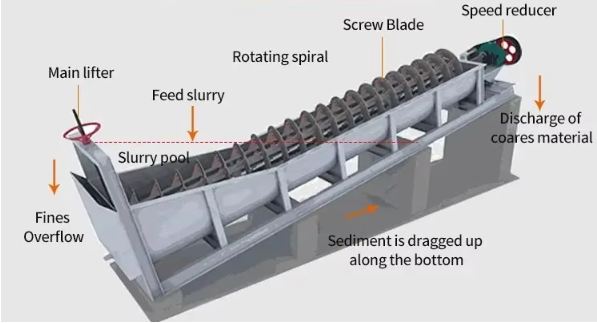

Spiral sand washing machine is suitable for washing, grading, and impurity removal in metallurgy, building materials, hydropower and other industries, and is used for washing fine and coarse grained materials. It is especially suitable for construction sand and road construction sand and gravel.
limestone washing machines spiral Washer Features
Spiral sand and gravel washing machine has low power consumption and high cleaning degree. Good sealing structure, fully enclosed transmission device, and adjustable weir plate ensure that the product is efficient, durable, has good cleaning and dehydration effects, and maintains stable fine grained products. It is suitable for washing medium-fine and coarse grained materials, and is used for washing, grading, impurity removal, and washing fine and coarse grained materials in highway, hydropower, construction and other industries.
Why customer choose limestone washing machines spiral Washer ?
If the limestone contains a lot of mud, the mud may clog the crushing or screening equipment, affecting production efficiency.
Customer requirements :
Limestone input size : 0-10 mm
clay and log : 40%
final clean standard ； not more than 5%
capacity : 20 -40 tph
Acoording to customer requirements ,we choose one loader 920 for loader limestone into hopper :
1. 920 limestone loader
2.Hopper 3x3x2 m
3.XL920 Sprial washer
4. B650x8m discharging conveyor belts
limestone washing machines spiral Washer Installation work
The installation steps of the spiral sand washing machine include the following aspects:
Choose a suitable installation site: Before installing the spiral sand washing machine, you should choose a suitable installation site. The sand washing machine should be installed on a solid concrete foundation. After selecting the site, use anchor bolts to fix the spiral sand washing machine. This can keep the sand washing machine stable during operation and make the production process safer2.
Weld professional brackets: The spiral sand washing machine will produce large vibrations during the operation and production process. Therefore, it must be installed on a solid cement foundation and weld professional brackets. The installation of the bracket should be designed according to the design drawings. The bracket can well protect the stable and safe operation of the sand washing machine2.
Adjust the gears of the water sand machine: After the various parts of the sand washing machine are installed, it is necessary to adjust the gears of the various parts of the sand washing machine equipment. Pay attention to whether the gap between the water tank and the large wheel half of the sand washing machine is consistent. After the gears are adjusted, the sand washing machine is fixed and installed on the cement foundation2.
Add lubricating oil: After all the sand washing equipment is installed, it is necessary to add lubricating oil to all parts of the sand washing machine that need to be lubricated. Pay attention to the height of the oil level. It is most appropriate to keep the lubricating oil added 50% below the center of the shaft.
Installation angle: The installation angle of the spiral sand washing machine is affected by the size of the material particles and the hardness of the installation ground. If the material particles are large and the sand washing concentration is high, the installation inclination angle should be larger accordingly, which can accelerate the overflow speed of the material. If the material particles are small, the installation inclination angle is smaller. If the installation ground is hard enough, the installation inclination angle can be appropriately increased. On the contrary, if the spiral sand washing machine is heavy, but the installation site is not hard, the installation inclination angle should not be too large. 2.
Equipment coordination: During the installation of the spiral sand washing machine, pay attention to the coordination between the equipment and the ground level to avoid the inclination angle of the equipment affecting the feeding and stability. Also check whether the bolts and door bins are locked.
limestone washing machines spiral Washer working vedios
https://www.youtube.com/shorts/I1-RxWtI30M customer working site vedio

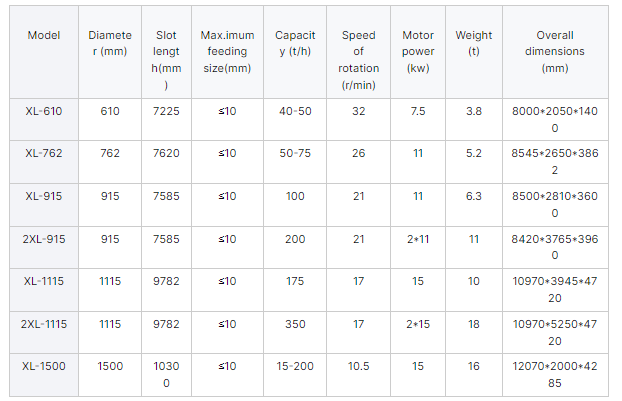

limestone washing machines spiral Washer technical parameters
how to choose limestone washing machines spiral Washer
1.what is the raw material do you want to process?
2.what is the capacity per hour do you need?
3.what is the raw material input size?
4.what is the output size of your product?
Copper is one of the most abundant metals in the Earth's crust, primarily found in sulfide and oxide ores. Common copper minerals include chalcopyrite, chalcocite, bornite, and cuprite, distributed across various geological settings worldwide.
Primary crushing using jaw crusher to reduce large ore chunks to appropriate sizes for subsequent grinding operations.
Ball mill further grinds the crushed ore into fine powder to ensure adequate liberation of copper minerals for flotation.
Spiral classifier classifies grinding products by particle size, ensuring the flotation feed meets optimal size requirements.
Flotation machine separates copper minerals from gangue, producing high-grade copper concentrate with high recovery rates.
This solution has helped us significantly improve copper concentrate grade while effectively reducing production costs. The equipment operates stably and reliably with easy maintenance, greatly enhancing our production efficiency.
