Brewer's grain dryer_Kilns & Dryers_Henan Terbaik Machinery

Brewer's grain dryer Introduction

Brewer's spent grain (BSG) is the solid residue left after the brewing process, consisting of malt, rice, and hops that have undergone mashing and filtration. With high moisture content (around 85%) and a sticky texture, BSG presents challenges in further processing. However, it can be converted into high-value animal feed, contributing to economic gains while reducing environmental pollution.

The brewer's spent grain dryer machine efficiently addresses the high moisture and stickiness of BSG, reducing its water content to approximately 10%. This makes it suitable for feed production. Widely adopted by breweries and feed manufacturers, the machine dehydrates and dries BSG, ensuring consistent quality and performance.

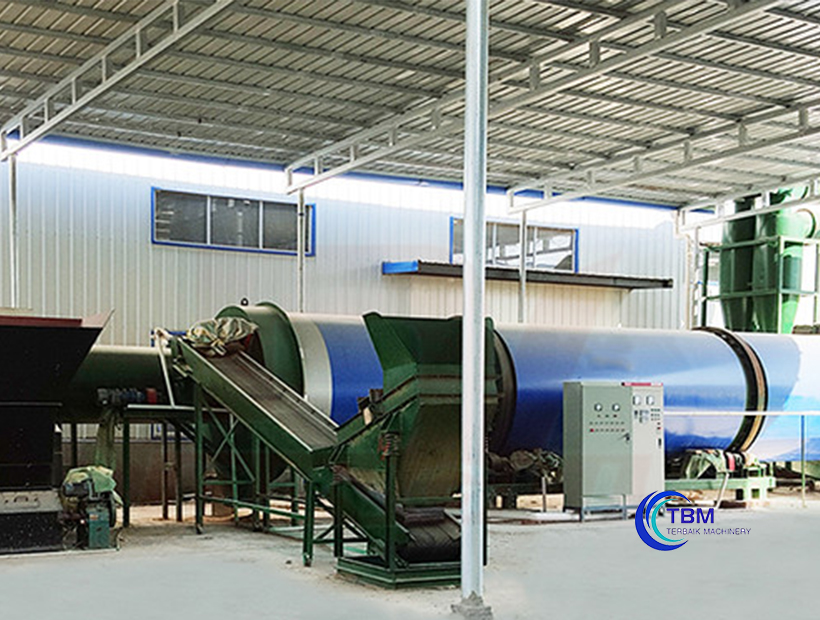

The dryer system comprises a heat source, feeding system, rotary drum, discharge system, induced draft fan, unloading device, and control panel. Wet BSG enters the rotary drum, where lifters evenly distribute the material for optimal heat and mass transfer. This ensures rapid and uniform drying.

Brewers grain dryer(图1)

Advantages of Brewer's grain dryer

1. High Automation and Capacity:

Fully mechanized operations allow large-scale production and continuous operation.

2. Robust and Efficient Design:

Simple structure ensures smooth material flow with minimal resistance, enabling easy operation and stable performance.

3. Low Maintenance Costs:

Reduced operational failures, low energy consumption, and minimal maintenance requirements ensure cost efficiency.

4. Uniform Drying:

The dryer delivers consistent drying results, making the final product suitable for high-protein animal feed production.

Brewers grain dryer(图1)

Product Features

Adjustable Discharge

Hydraulic system adjusts discharge opening to control product size

Wide Size Range

Produces 3-50mm aggregates in various specifications

Excellent Shape

Cubical shape for high-quality aggregates

Auto Control

PLC control system for automated operation

Working principle

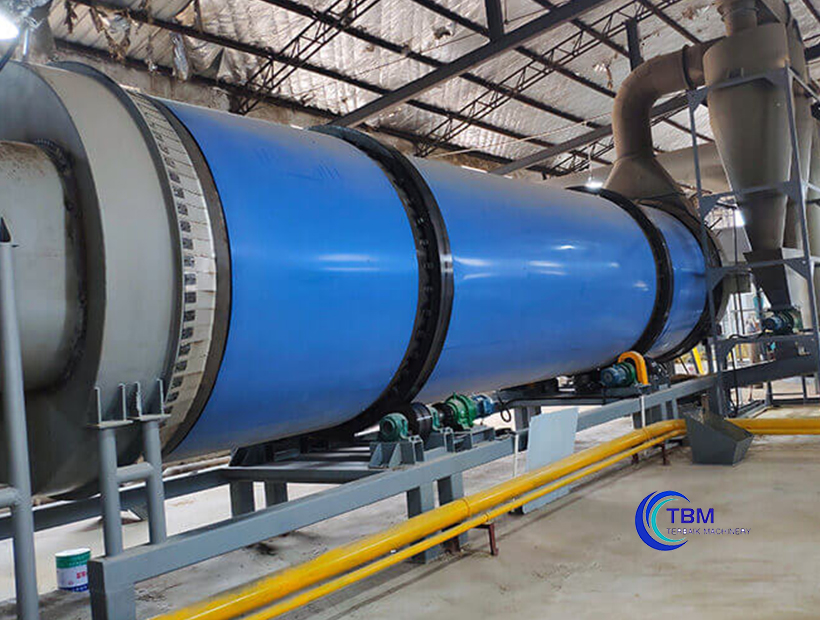

Wet BSG is fed into the rotary drum of the dryer, equipped with spiral lifters that continuously lift and spread the material. Built-in striking devices prevent material buildup on the drum walls and lifters. The dispersed material interacts with hot air supplied by the induced draft fan, accelerating heat and mass transfer.

The process ensures thorough water evaporation, reducing moisture content from 85% to approximately 10%. The dried product is discharged from the outlet, ready for use in high-protein feed production. This automated drying system transforms BSG processing into an efficient, industrial-scale operation with minimal labor requirements.

Brewers grain dryer(图1)

Solutions

Mobile Crushing

Crawler Jaw Mobile Plant
Crawler Cone Mobile Plant
Crawler Screen Mobile Plant
Mobile Feeder

Suitable for: Quarries, mining, construction waste recycling

Stationary Crushing

Jaw Crusher
Cone Crusher
Vibrating Feeder
Vibrating Screen

Suitable for: Large quarries, cement plants, highways

Sand Making Line

VSI Impact Crusher
Sand Washing Machine
Dewatering Screen
Fine Sand Recovery

Suitable for: High-quality sand, concrete batching plants

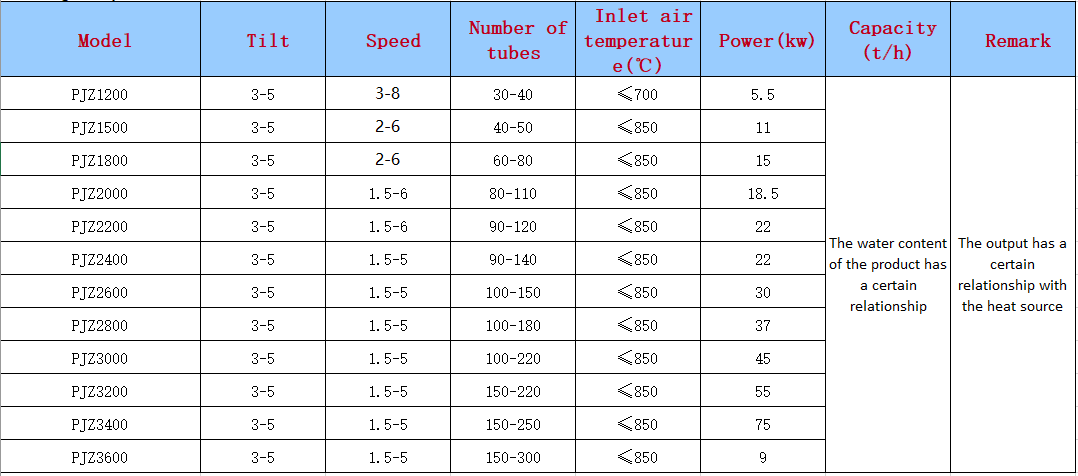

Technical Specifications

Brewers grain dryer(图1)

Frequently Asked Questions

We are factory.

7-10 days for the stock.15-30 days for the mass production.

30% deposit in TT advance, 70% balance before shipment.

One year. Spare parts for you at lowest cost.

Yes, we can help you set up a complete production line and give you related professional advice. Wehad already build many mining projects in China & Overseas.
