Home > Products > Solid Waste Shredder Machine

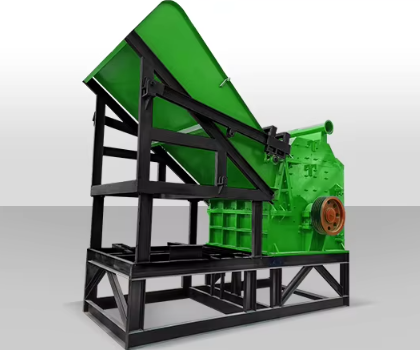

Scrap Metal Shredder Machine

Application Of Scrap metal Shredder machine:Scrap Steel Hammer Shredder is a crushing equipment used to treat scrap steel. It is mainly used for crushing scrap carhousehold appliances and light and thin scrap steel. The crushing material treated by scrap crusher has high density,

Input Size
1000 mm
Capacity
500-5000 kg
Type
Heavy Large Model 1600 Car Waste Iron Metal Scrap Hammer Crusher Machine for Scrap Metal Crushing
WhatsApp Get Quote
Scrap Metal Shredder Machine

Scrap Metal Shredder Machine Introduction

Application Of Scrap metal Shredder machine:

Scrap Steel Hammer Shredder is a crushing equipment used to treat scrap steel. It is mainly used for crushing scrap car
household appliances and light and thin scrap steel. The crushing material treated by scrap crusher has high density, high purity and little impurities. When the crushing material is re-melted into new products by steel mills and other  manufacturing enterprises, the unit energy consumption is low, the output is high, and the comprehensive economy is obvious. Scrap crusher is recognized as an ideal equipment for scrap treatment.

Scrap Metal Shredder Machine(图1)

Advantages of Scrap Metal Shredder Machine

Feature Of Scrap metal Shredder machine:

1. Super high crushing efficiency
Hydraulic feeding, hammer throwing and ring hammer combined crushing hammer head can improve the efficiency of other crusher equipment by 5% - 15%.
2. Perfect finished granules
The unique roller rubbing process can significantly remove the paint and other contaminants, form high-density pellets and
improvethe grade of crushing materials.
3. Stable operation capability
When the safety door is set, after the non-breakable material enters the crushing chamber, the operator can open the safety door and discharge it from the body to avoid damaging the crusher.
4. Intelligent Control System
PLC control system and hydraulic power system can save time and labor in intelligent production and realize stable, automatic and safe operation of the whole production line.

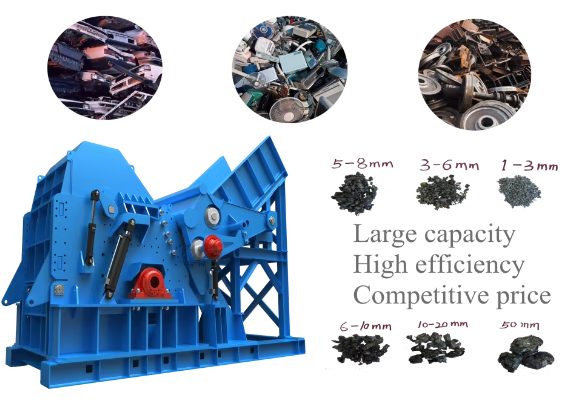

Scrap Metal Shredder Machine(图1)

Product Features

Adjustable Discharge

Hydraulic system adjusts discharge opening to control product size

Wide Size Range

Produces 3-50mm aggregates in various specifications

Excellent Shape

Cubical shape for high-quality aggregates

Auto Control

PLC control system for automated operation

Working principle

Working principle Of Scrap metal Shredder machine:

The whole production line of scrap crusher consists of feeding conveyor, main engine, vibration feeder, discharging conveyor,magnetic separator, iron conveyor, impurity conveyor, dust collector and PLC control cabinet. The crushed materials from scrap hammer shredder are separated from non-ferrous and non-ferrous metals by vibration feeder, belt conveyor and magnetic separation system, and sent out to stack by their respective conveyors. Non-ferrous metals and non-metallic materials in the conveyor will be searched by magnetic separation equipment again, and free iron metals will be sorted out, so as to improve the recovery rate of iron metals. At the same time, non-ferrous metals can be sorted by eddy current separator, which can improve the recovery efficiency. The whole broken line is controlled by PLC, which can realize computer control and manual operation.

The main equipment of scrap crushing line includes chain plate feeder, scrap crusher main machine, hydraulic feeder, vibration feeder, belt feeder, upper suction magnetic separator, discharging conveyor, iron remover, rotary conveyor, etc.

Solutions

Mobile Crushing
  • Crawler Jaw Mobile Plant
  • Crawler Cone Mobile Plant
  • Crawler Screen Mobile Plant
  • Mobile Feeder

Suitable for: Quarries, mining, construction waste recycling

Stationary Crushing
  • Jaw Crusher
  • Cone Crusher
  • Vibrating Feeder
  • Vibrating Screen

Suitable for: Large quarries, cement plants, highways

Sand Making Line
  • VSI Impact Crusher
  • Sand Washing Machine
  • Dewatering Screen
  • Fine Sand Recovery

Suitable for: High-quality sand, concrete batching plants

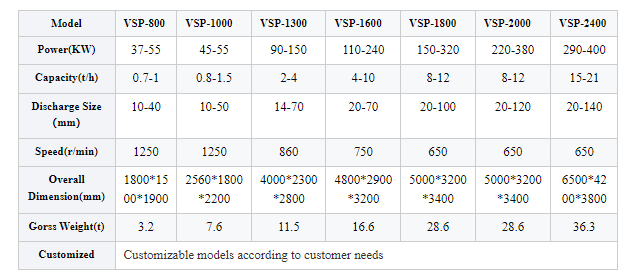

Technical Specifications

Scrap Metal Shredder Machine(图1)

Frequently Asked Questions

We are factory.

7-10 days for the stock.15-30 days for the mass production.

30% deposit in TT advance, 70% balance before shipment.

One year. Spare parts for you at lowest cost.

Yes, we can help you set up a complete production line and give you related professional advice. Wehad already build many mining projects in China & Overseas.
