Capacity: 3-600TPH Feeding Size: ≤1200mm Discharging Size: 15-200mm Handling Materials: Limestone, iron ore, steel slag, phosphate ore, copper ore, silicon ore, quartz ore,etc.
Jaw Crusher
A jaw crusher is a robust and versatile heavy-duty equipment which widely used in mining, construction, and recycling industries. It is designed to crush large rocks, ores, and other hard materials into smaller, more manageable pieces through a process of compression. The machine consists of two jaw plates: a fixed jaw and a movable jaw. The movable jaw exerts force on the material by pressing it against the fixed jaw, effectively crushing it into smaller sizes.
High Crushing Ratio
One of the standout features of jaw crusher is the ability to produce a high crushing ratio, often exceeding 10:1. It means that even large materials can be reduced to a smaller size efficiently, making the process more effective.
V-Shaped Crushing Cavity Design
The mining jaw crusher for sale adopts a “V-shaped” crushing cavity design, the optimized configuration of the crushing cavity structure and moving jaw motion trajectory parameters, and a large stroke maximizes the feed size, output, and crushing ratio.
Wedge Adjustment Mechanism
The use of wedge adjustment instead of the traditional pad-type discharge opening adjustment makes the adjustment of the discharge opening easier to achieve step-less adjustment.
Shock Absorption Technology
The elastic limit block and rubber damping device are used to replace the original rigid foot connection, which can effectively absorb the shock peak load, thereby reducing the mutual impact between the crusher and the foundation and increasing the service life of the equipment.
Integrated Motor Base Design
The integrated motor base design reduces the installation space of the equipment and makes the power output more stable.
Oversized Tapered Roller Bearings
The oversized tapered roller bearings have uniform inner and outer bearing models, which reduces the number of jaw crusher parts.
Hydraulic system adjusts discharge opening to control product size
Produces 3-50mm aggregates in various specifications
Cubical shape for high-quality aggregates
PLC control system for automated operation

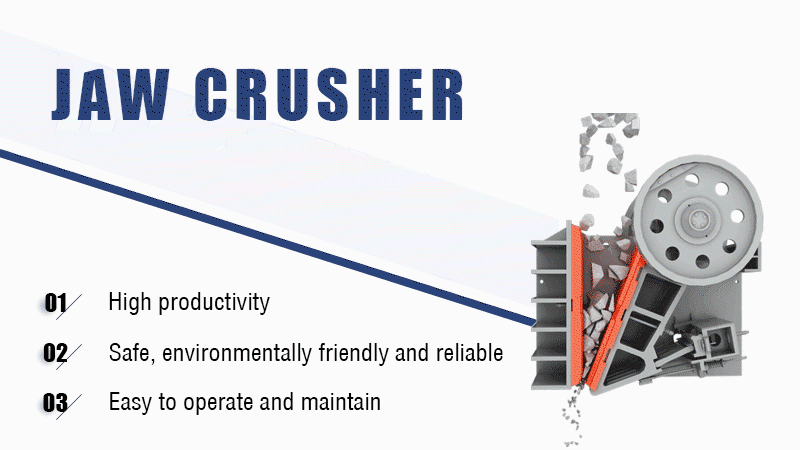

1.Material Feeding: Large rocks or materials are fed into the crushing chamber from the top of the machine.
2.Compression: The movable jaw moves towards the fixed jaw, compressing the material between the two plates. This action breaks the material into smaller pieces.
3.Release and Repeat: The movable jaw then moves away from the fixed jaw, allowing the crushed material to fall further down the chamber. This process repeats cyclically until the material is small enough to pass through the discharge opening at the bottom.
4.Discharge: The crushed material exits the crusher through the discharge opening, ready for further processing or use.
