Hydraulic cone crusherIntroduction

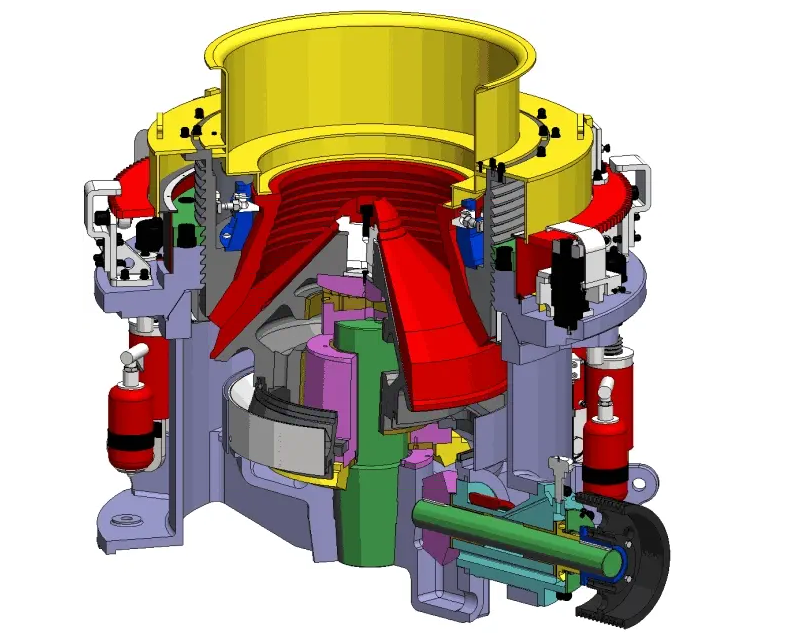

Multi-cylinder Hydraulic Cone Crusher Based on some design principles of traditional multi-cylinder hydraulic cone crushers like fixed main shaft, eccentric sleeve rotating around main shaft and lamination crushing, Multi-cylinder Hydraulic Cone Crusher makes a breakthrough on its structure. After optimization, the structure improves the performance and crushing capability a lot. Meanwhile, the hydraulic lubrication system of HPC Cone Crusher not only ensures the stable operation but also makes the system control more intelligent.

HP series Multi-cylinder hydraulic cone crusher(图1)

Advantages of Hydraulic cone crusher

Reserving unique structures like the fixed axis and the characteristic that eccentric sleeve rotates around the axis, HP Hydraulic Cone Crusher further optimizes the transmission parts and lubrication and sealing structures. So, this crusher boasts strong holding capacity, bigger installed power, higher efficiency yet lower noises.

HP series Multi-cylinder hydraulic cone crusher(图1)

Product Features

Adjustable Discharge

Hydraulic system adjusts discharge opening to control product size

Wide Size Range

Produces 3-50mm aggregates in various specifications

Excellent Shape

Cubical shape for high-quality aggregates

Auto Control

PLC control system for automated operation

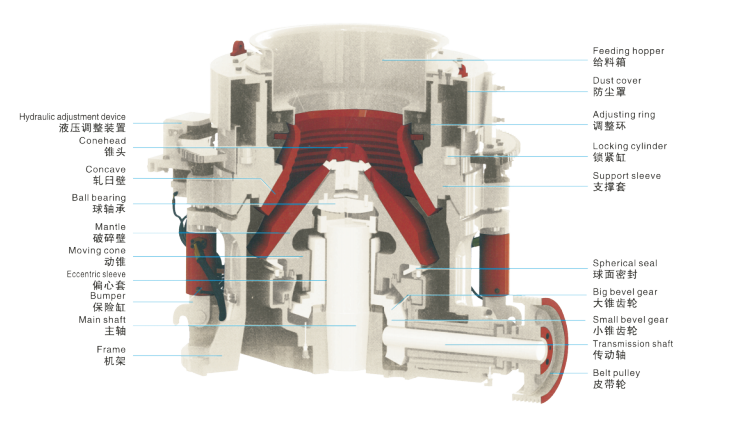

Working principle

(1) Transmission device: Countershaft assembly is supported by the bronze countershatf bushings, can be dismounted for convenience of maintence. And the gear and pinipn with high strengh and high precision are adopted to ensure the reliable operation of equipment.
(2) Main shaft: Forged form hardened and tempered chrome molybdenum steel particularly large diameter to suit wear-resisting application. High quality copper socket liner can bear high crushing load, and allows the machine working under rigorous condition.
(3) Cone and mantle plate, high manganese steel casting, hydraulic lock device is convenient and reliable.
(4) Spring and hydraulic device: Convenient for adjusting the discharge size, can remove the foreign materials if non-crushable objects came into the crushing chamber.

HP series Multi-cylinder hydraulic cone crusher(图1)

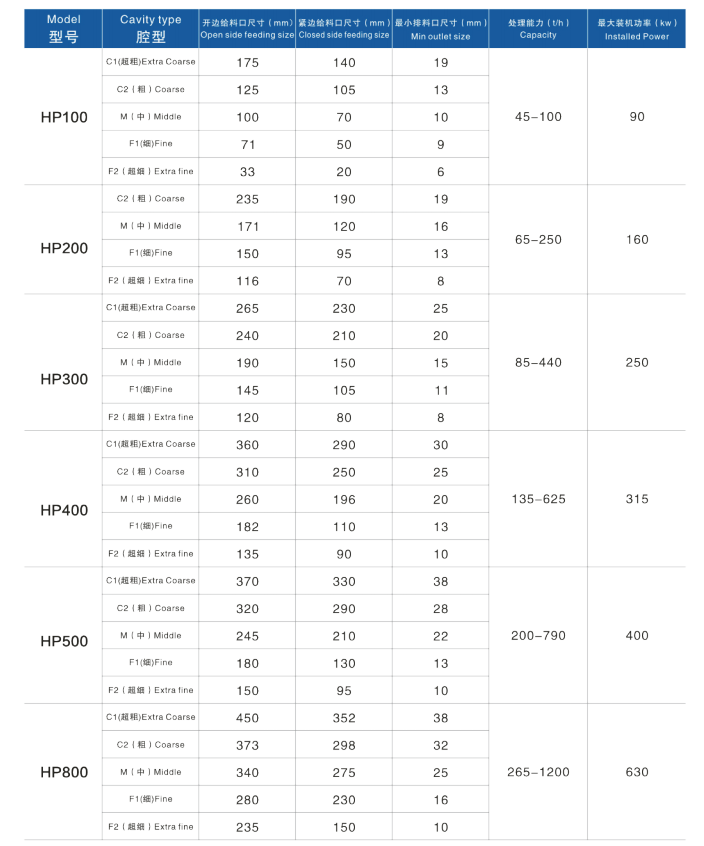

Technical Specifications

HP series Multi-cylinder hydraulic cone crusher(图1)

Frequently Asked Questions

We are factory.

7-10 days for the stock.15-30 days for the mass production.

30% deposit in TT advance, 70% balance before shipment.

One year. Spare parts for you at lowest cost.

Yes, we can help you set up a complete production line and give you related professional advice. Wehad already build many mining projects in China & Overseas.
