Cement clinker grinding Mill_Grinding Ball Mill

Cement millIntroduction

Cement clinker ball mill is a key equipment in cement production, mainly used to grind cement clinker into a fine powder.The cement clinker ball mill can be used for open-flow grinding, and it is also suitable for circulating circlip grinding formed with the powder separator.It is suitable for grinding finished products and raw materials in cement plants, as well as for grinding various ores and other abrasive materials in industrial and mining enterprises such as metallurgy, chemical industry, electric power, etc.

Cement clinker grinding Mill(图1)

Advantages of Cement mill

1. Suitable for processing hard materials.

2. It can be operated continuously without affecting the oil filling of the roller bearing chamber during operation.

3. Low power consumption, high efficiency, convenient installation and maintenance.

4. Low failure rate and long service life, 3-5 times that of ordinary Raymond mills.

5. The cement raw material mill has low noise and low vibration.

Cement clinker grinding Mill(图1)

Product Features

Adjustable Discharge

Hydraulic system adjusts discharge opening to control product size

Wide Size Range

Produces 3-50mm aggregates in various specifications

Excellent Shape

Cubical shape for high-quality aggregates

Auto Control

PLC control system for automated operation

Working principle

The cement clinker ball mill is a two-silo, lattice-type cement clinker ball mill driven by gear on the outer edge.The material is spiraled evenly from the feeding device through the feeding hollow shaft into the first silo of the mill. There are stepped liners or corrugated liners in the silo, and steel balls of different specifications are built in. The rotation of the cylinder generates centrifugal force to bring the steel ball to a certain height and then fall, which will have a heavy blow and grinding effect on the material.After the material reaches rough grinding in the first warehouse, it enters the second warehouse through a single-layer compartment plate. The warehouse is inlaid with a flat liner and steel balls to further grind the material.The powder is discharged through the discharge grate to complete the grinding operation.

Cement clinker grinding Mill(图1)

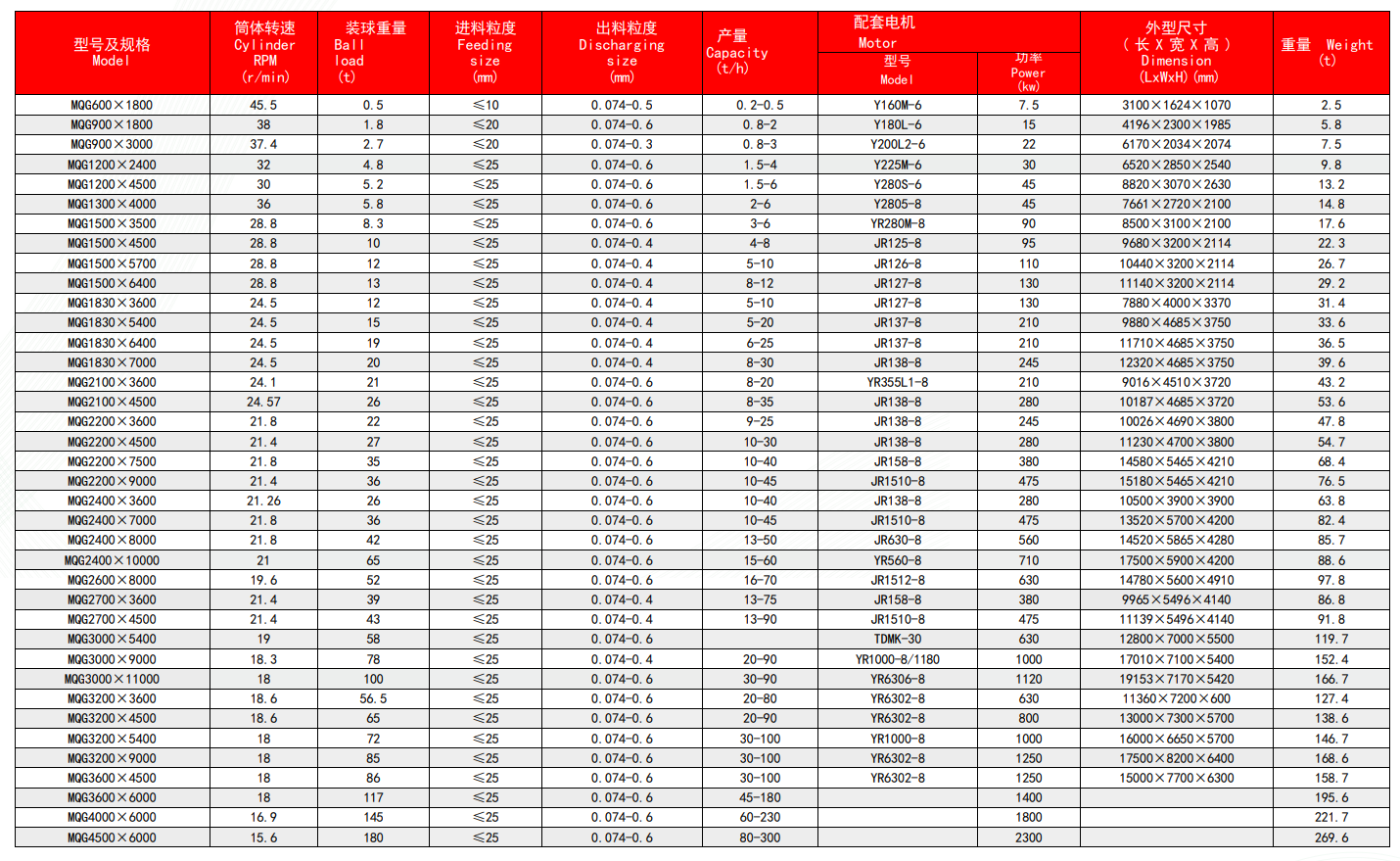

Technical Specifications

Cement clinker grinding Mill(图1)

Frequently Asked Questions

We are factory.

7-10 days for the stock.15-30 days for the mass production.

30% deposit in TT advance, 70% balance before shipment.

One year. Spare parts for you at lowest cost.

Yes, we can help you set up a complete production line and give you related professional advice. Wehad already build many mining projects in China & Overseas.
