ball millIntroduction

What is a Ball Mill?

The ball mill is a crucial grinding device widely utilized across multiple industrial sectors, including cement, silicate products, novel construction materials, refractory materials, fertilizers, ferrous and non-ferrous metal ore dressing, as well as glass and ceramics manufacturing. Its fundamental operating principle lies in the utilization of grinding bodies within the mill cylinder (such as steel balls, rods, or other shaped media) that impact, compress, and grind the materials during rotational motion, effectively reducing them to the desired particle size.

A ball mill is a grinding machine designed to grind hard materials into a fine powder. It is a large horizontal cylinder that rotates on its axis. We fill the cylinder with the material you need to grind, along with a grinding media. This media is usually made of hard steel or ceramic balls. As the cylinder turns, the balls are lifted and then fall, crushing and grinding the material trapped between them. This process is very effective for creating a uniform, fine product. It is a trusted technology that has been used for many decades in demanding applications.

Ball Mill(图1)

Advantages of ball mill

High crushing efficiency: The ball mill uses the collision and friction between the grinding ball and the material to crush. It has high crushing efficiency and can obtain finer powder.

• Wide scope of application: Ball mill is suitable for crushing and grinding various materials, including metals, non-metals, ores, ceramics, etc.

• Simple operation: The operation of the ball mill is relatively simple. You only need to put the materials into the mill, add an appropriate amount of grinding balls and water or other media, and then start the equipment.

• Large output: The ball mill can produce continuously and has a large output, which can meet the needs of large-scale industrial production.

• Simple structure and easy maintenance: The ball mill has a relatively simple structure and is easy to maintain . At the same time, its sturdy and durable design also ensures its service life.

Ball Mill(图1)

Ball Mill(图2)

Product Features

Adjustable Discharge

Hydraulic system adjusts discharge opening to control product size

Wide Size Range

Produces 3-50mm aggregates in various specifications

Excellent Shape

Cubical shape for high-quality aggregates

Auto Control

PLC control system for automated operation

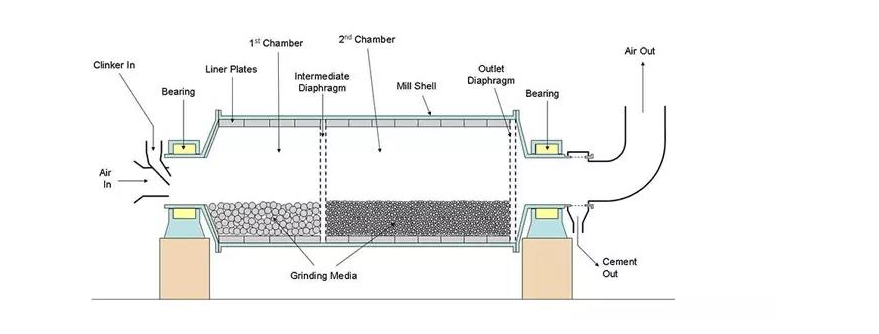

Working principle

What are Features of Ball Mill?

A modern ball mill has features designed for high performance and long life. The main body, or shell, is made from thick, high-strength steel plates. Inside, the shell is protected by replaceable wear-resistant liners. These liners are not just for protection; they have lifter bars that are crucial for lifting the grinding media efficiently. The drive system is powerful and reliable, consisting of a large girth gear, a pinion, a gearbox, and a high-efficiency motor. Our mills at Henan terbaik also feature robust, oversized bearings to support the heavy rotating load smoothly. These features ensure that the ball mill machine can run continuously for long periods with minimal issues.

Ball Mill(图1)

How Does A Energy Saving Ball Mill Work?

1.Material Feeding: Crushed raw materials (≤25mm) enter the rotating drum through a sealed inlet, mixed with grinding media (steel balls/segments).

2. Cascading Motion: The drum's rotation lifts materials and media, creating impact (crushing) and attrition (grinding) forces as they cascade downward.

3. Particle Refinement: Repeated collisions reduce particles to 45-150μm; internal classifying liners separate fines from coarse fragments for continuous processing.

4. Discharge & Recycling: Ground powder exits via discharge grate, while oversize particles circulate back. Closed-circuit systems add air classifiers for ultra-fine products (≤30μm).

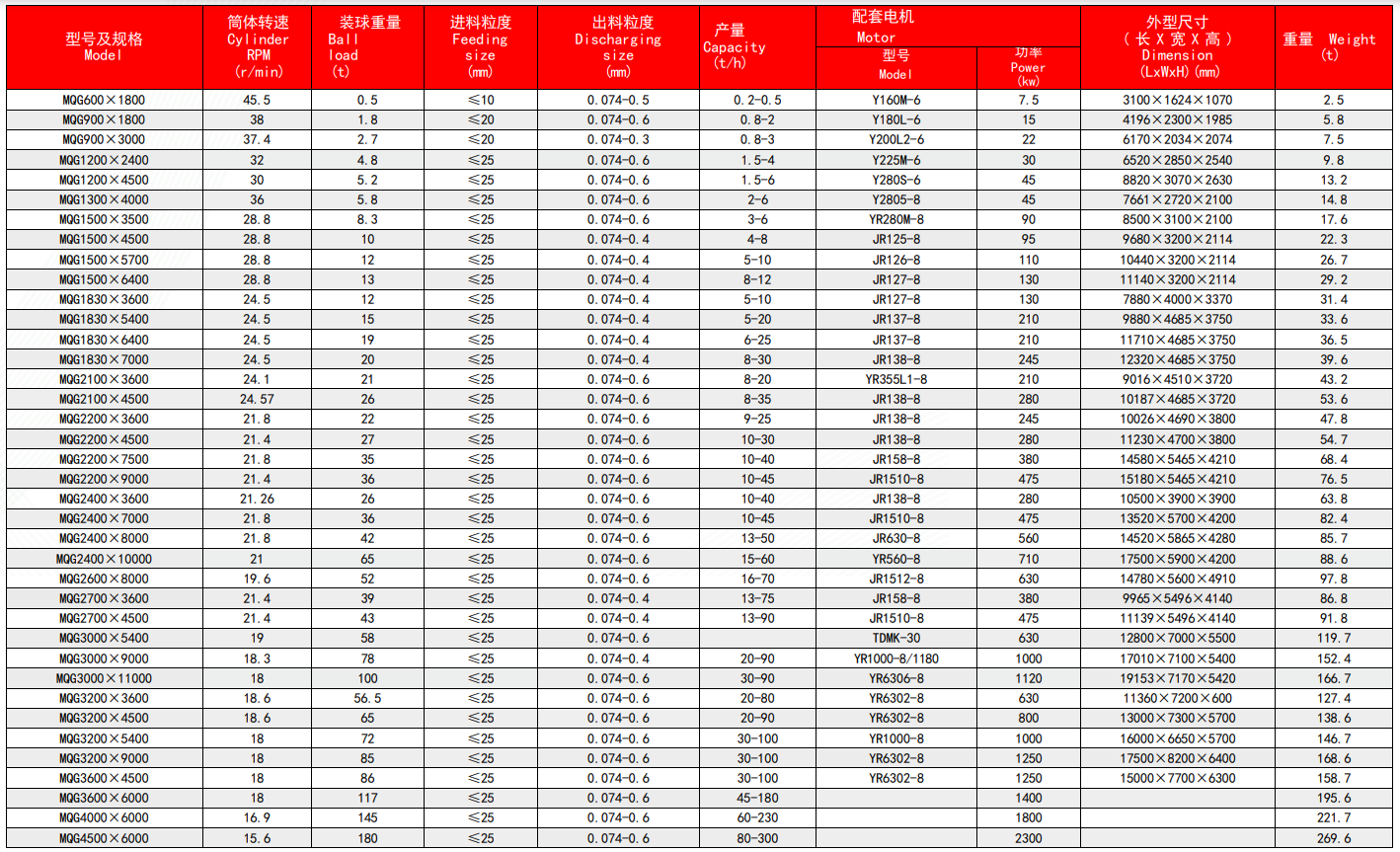

Technical Specifications

Frequently Asked Questions

We are factory.

7-10 days for the stock.15-30 days for the mass production.

30% deposit in TT advance, 70% balance before shipment.

One year. Spare parts for you at lowest cost.

Yes, we can help you set up a complete production line and give you related professional advice. Wehad already build many mining projects in China & Overseas.

Crushing Equipment

Mineral Processing Equipment

Kilns & Dryers

Ore processing plant

Concrete Batching Plant

Ball Mill

<25mm

0.65-615t/h

ball mill, rod mill
