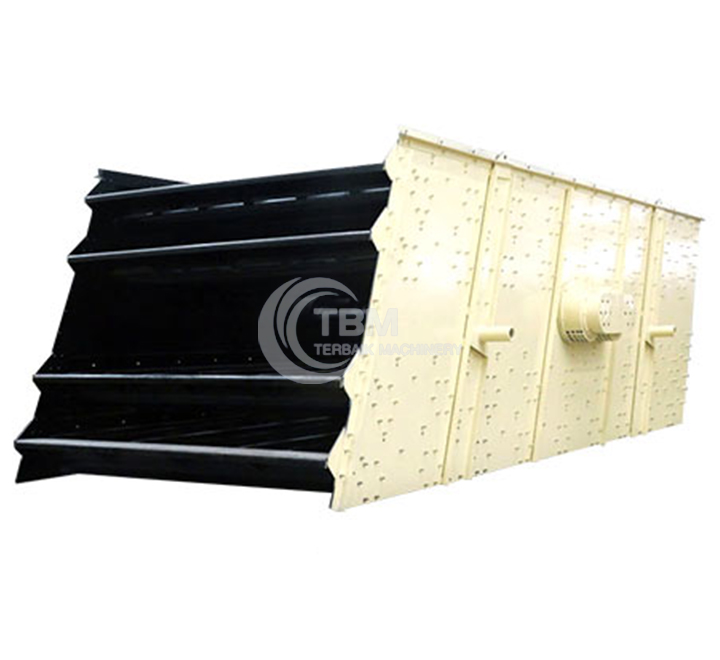

Multi Deck vibrating Quarry Rock Grizzly screen For Gravel_Crushing Equipment

Vibrating Screen Introduction

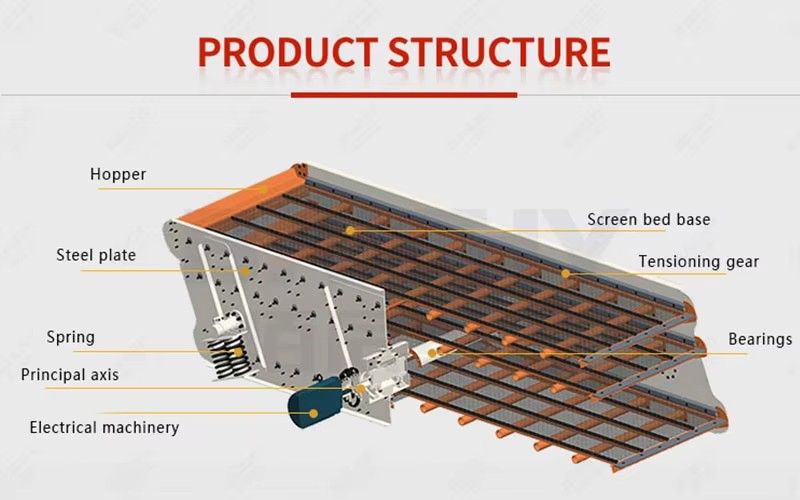

What is the YK series vibrating screen?

YK series vibrating screen is a high-efficiency vibrating screening equipment that uses an inner eccentric shaft or block eccentricity as the excitation force. It has the advantages of a stable structure, high screening efficiency, low power consumption, and low noise. It is widely used in product grading and screening operations in many industries.

YK series vibrating screens are widely used in quarrying sand and gravel, as well as product grading in coal preparation, mineral processing, building materials, power, and chemical industries. Its efficient and stable screening performance has been recognized by the majority of users.

Multi Deck vibrating Quarry Rock Grizzly screen For Gravel(图1)

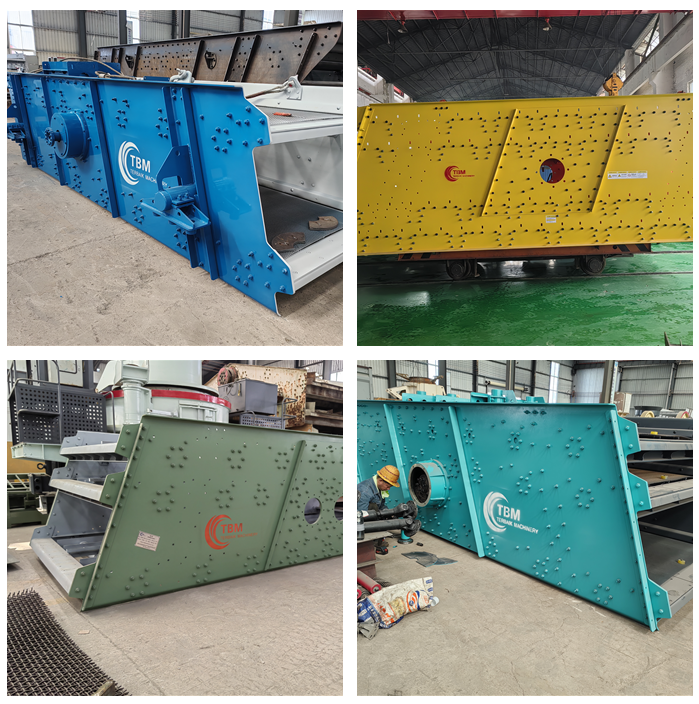

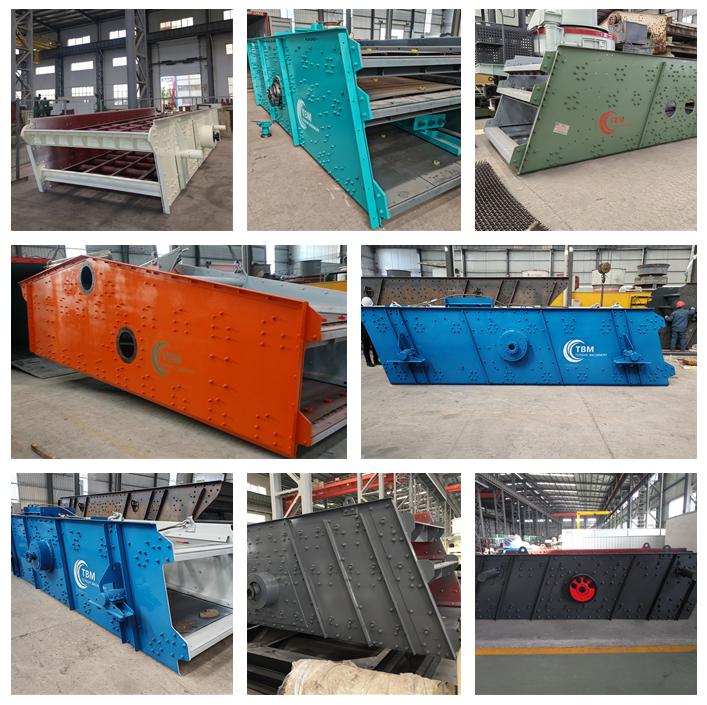

Hot-selling models of YK series vibrating screens

YK1545 type of vibrating screen is suitable for screening small and medium-sized materials. YK1860 performs well when processing large amounts of materials; the YK2160 vibrating screen is widely praised for its powerful processing capacity and efficient screening performance; YK2460, as a large vibrating screen in the YK series, has significant advantages in screening large materials.

Multi Deck vibrating Quarry Rock Grizzly screen For Gravel(图2)

Advantages of Vibrating Screen

Here’s a refined overview of the advantages of a circular vibrating screen:

Advantages of YK series vibrating screens

Efficient screening mechanism: YK series vibrating screens use internal eccentric shafts or block eccentricity as excitation force, and the eccentric shaft or eccentric block is driven by the motor to rotate so that the vibrating screen moves in a circular trajectory of up, forward, and down and backward. This motion trajectory allows the screened material to slip through the screen evenly and quickly, thereby improving the screening efficiency.

Multiple screening specifications: The mesh size of the YK series vibrating screen is generally between 3-50mm, which can be adjusted according to the screening requirements of different materials. At the same time, its processing capacity can reach 250t/h, ensuring efficient screening without blocking holes.

Multi Deck vibrating Quarry Rock Grizzly screen For Gravel(图1)

Product Features

Adjustable Discharge

Hydraulic system adjusts discharge opening to control product size

Wide Size Range

Produces 3-50mm aggregates in various specifications

Excellent Shape

Cubical shape for high-quality aggregates

Auto Control

PLC control system for automated operation

Working principle

Working principle of Vibrating Screen

The electromotor drives the belt and pulley to make the movable jaw move back and forth, up and down through the eccentric shaft. The raw material is squashed or splitt when movable jaw plate moves towards fixed jaw together with movable jaw. When movable jaw and movable jaw plate turn back by eccentric shaft and spring, the raw material, which is squashed or split before discharges from the bottom outlet under jaw plate. The bulk-production comes true while electromotor rotates continuously and the movable jaw crushes and discharges the raw material periodically.

Multi Deck vibrating Quarry Rock Grizzly screen For Gravel(图1)

Solutions

Mobile Crushing

Crawler Jaw Mobile Plant
Crawler Cone Mobile Plant
Crawler Screen Mobile Plant
Mobile Feeder

Suitable for: Quarries, mining, construction waste recycling

Stationary Crushing

Jaw Crusher
Cone Crusher
Vibrating Feeder
Vibrating Screen

Suitable for: Large quarries, cement plants, highways

Sand Making Line

VSI Impact Crusher
Sand Washing Machine
Dewatering Screen
Fine Sand Recovery

Suitable for: High-quality sand, concrete batching plants

Technical Specifications

Model	Sieve rowspan rowspan layer	Sieve rowspan rowspan area rowspan (㎡)	Mesh rowspan rowspan size rowspan (mm)	Max. rowspan feeding rowspan rowspan size rowspan (mm)	Processing rowspan rowspan capacity rowspan (m³/h)	Vibrating rowspan rowspan Frequency rowspan (r/min)	Double rowspan rowspan amplitude rowspan (mm)	Motor rowspan rowspan power rowspan (kw)	Sieve rowspan rowspan obliquity rowspan (°)	Sieve rowspan specification rowspan (mm)	Total rowspan rowspan weight rowspan (kg)	Dimensions rowspan (L×W×H) rowspan (mm)
2YK1225	2	6	4-50	400	8-60	800-970	8	5.5	20	1200×2500	3500	2930×1860×870
3YK1225	3	9	4-50	400	10-70	800-970	8	5.5	20	1200×2500	3850	3070×1860×1210
2YK1230	2	7.2	4-50	400	12-78	800-970	8	7.5	20	1200×3000	4200	3430×1860×870
3YK1230	3	10.8	4-50	400	13-80	800-970	8	7.5	20	1200×3700	4600	3570×1860×1210
2YK1237	2	8.88	4-50	400	15-86	800-970	8	7.5	20	1200×3700	4600	4050×1860×870
3YK1237	3	13.32	4-50	400	16-90	800-970	8	7.5	20	1500×3500	5200	4270×1860×1210
2YK1535	2	10.5	5-50	400	20-125	800-970	8	11	20	1500×3500	5890	4120×2210×1230
3YK1535	3	15.75	5-50	400	21-125	800-970	8	11	20	1500×3500	6700	4360×2210×1610
2YK1545	2	13.5	5-50	400	22-150	800-970	8	15	20	1500×4500	6330	5120×2210×1230
3YK1545	3	20.25	5-50	400	22-150	800-970	8	15	20	1500×4500	6800	5360×2210×1610
4YK1545	4	27	5-50	400	22-155	800-970	8	18.5	20	1500×4500	7800	5930×2210×2060
2YK1548	2	14.4	5-50	400	22.5-162	800-970	8	15	20	1500×4800	6980	5420×2210×1230
3YK1548	3	21.6	5-50	400	22.5-162	800-970	11	15	20	1500×4800	7700	5660×2210×1610
4YK1548	4	28.8	5-50	400	22.5-162	800-970	8	18.5	20	1500×4800	8700	6230×2210×2060
2YK1848	2	17.28	5-80	400	25-206	750	8	15	20	1800×4800	9080	5420×2550×1420
3YK1848	3	25.92	5-80	400	32-276	750	8	18.5	20	1800×4800	9600	5660×2550×1780
4YK1848	4	34.56	5-80	400	32-285	750	8	22	20	1800×4800	11100	6290×2550×2160
2YK1854	2	19.44	5-80	400	32-312	800-970	8	18.5	20	1800×5400	10150	5960×2550×1420
3YK1854	3	29.16	5-80	400	32-312	800-970	8	22	20	1800×5400	10840	6260×2550×1780
4YK1854	4	38.88	5-80	400	32-336	800-970	8	30	20	1800×5400	12840	6830×2550×2160
2YK2160	2	25.2	5-100	400	50-475	970	8	30	20	2100×2600	11780	6720×2840×1530
3YK2160	3	37.8	5-100	400	50-475	970	8	30	20	2100×2600	12800	7030×2840×1910
4YK2160	4	50.4	5-100	400	50-497	970	8	37	20	2100×2600	14800	7300×2840×2380
2YK2460	2	28.8	5-100	400	65-550	970	8	37	20	2400×6000	15600	7020×3140×1530
3YK2460	3	43.2	5-100	400	70-620	970	8	37	20	2400×6000	17600	7300×3140×1910
4YK2460	4	57.6	5-100	400	80-680	970	8	45	20	2400×6000	19600	7600×3140×2380
2YK2870	2	39.2	5-100	400	120-680	750	8	22×2	20	2800×7000	21200	7600×4320×1620
3YK2870	3	58.8	5-100	400	180-720	750	8	22×2	20	2800×7000	22400	7800×4320×2120
2YK3072	2	43.2	5-100	400	200-700	750	8	22×2	20	3000×7200	23600	7800×4520×1750
3YK3072	3	64.8	5-100	400	230-800	750	8	22×2	20	3000×7200	25500	8000×4520×2300

About YK Series vibrating screen

YK series vibrating screens generally have a large processing capacity and can meet the needs of production lines of different sizes.

Multi Deck vibrating Quarry Rock Grizzly screen For Gravel(图1)

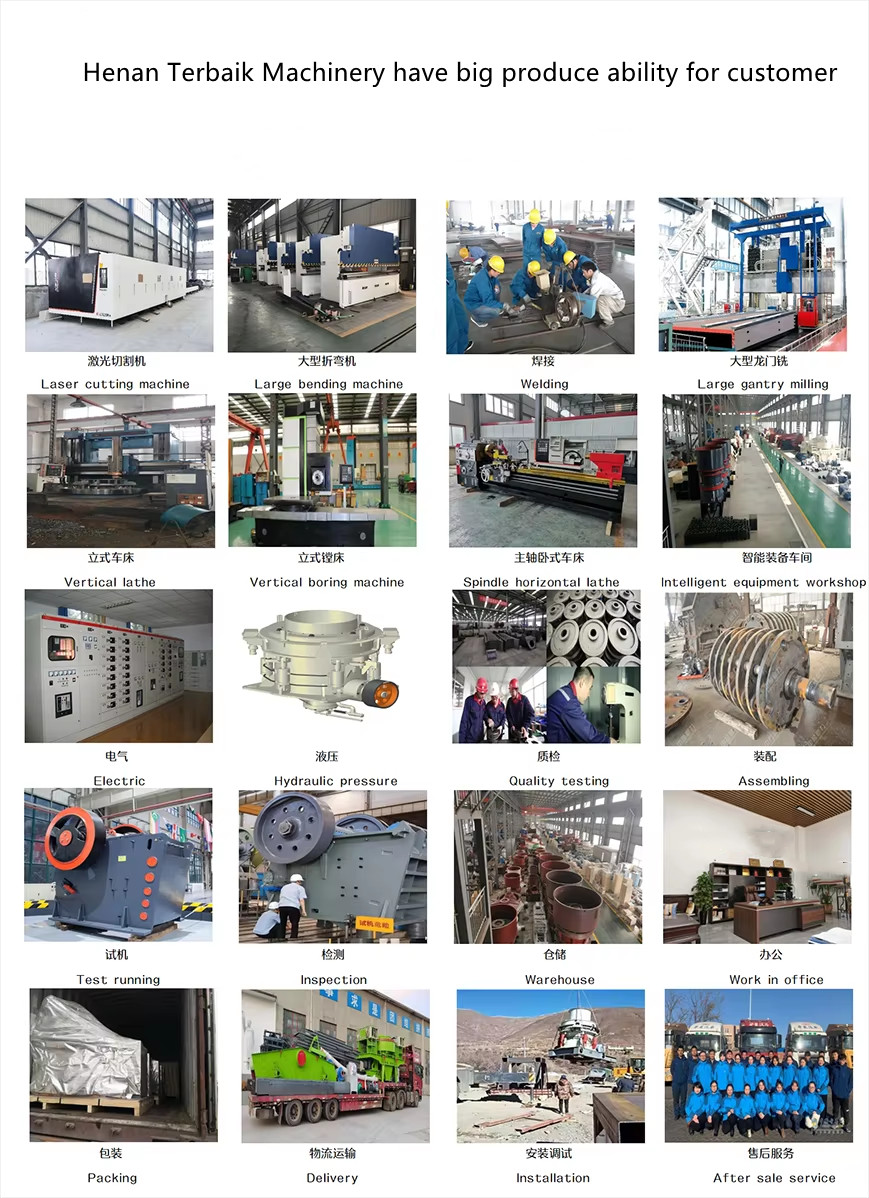

About delivery standards

Terbaik machinery has extremely complete delivery standards, a series of standards and regulations formulated to ensure that the ordered goods can be delivered completely and accurately according to the needs and requirements of customers. These standards usually involve quantity, specifications, quality, packaging, documents and time, etc., to ensure the smooth progress of the delivery process and improve customer satisfaction.

Multi Deck vibrating Quarry Rock Grizzly screen For Gravel(图2)

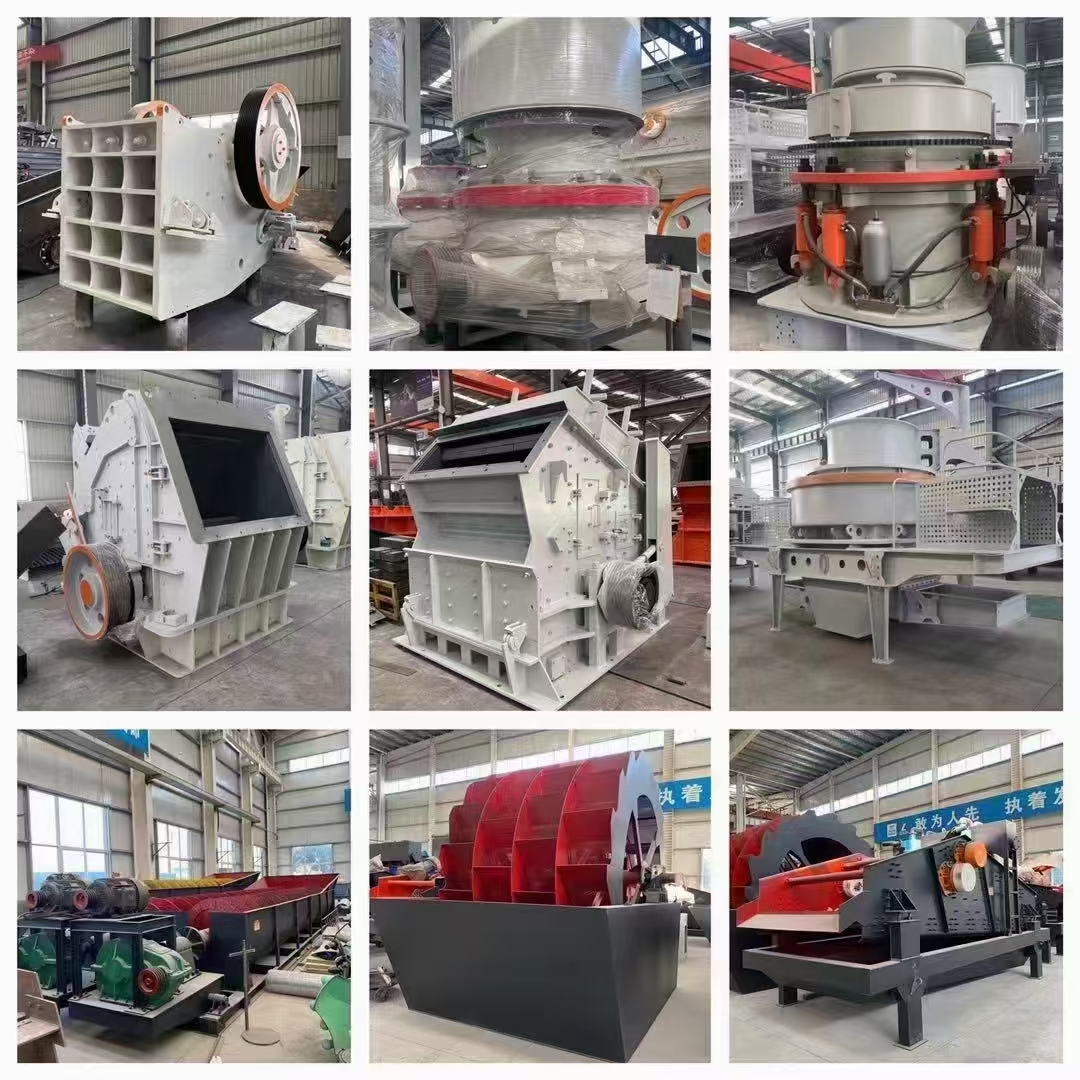

If you needs others stone crusher , it is also avaiable

Multi Deck vibrating Quarry Rock Grizzly screen For Gravel(图3)

FAQ:

Q:Are you manufacture or trading company?

A: We are factory.

Q: How long is your delivery time?

A:7-10 days for the stock.15-30 days for the mass production.

Q:What is your payment method?

A:30% deposit in TT advance, 70% balance before shipment.

Q: How long is the warranty? Does your company supply the spare parts?

A:One year. Spare parts for you at lowest cost.

Q: lf l need the complete crushing plant can you help us to build it?

A:Yes, we can help you set up a complete production line and give you related professional advice. Wehad already build many mining projects in China & Overseas.

Multi Deck vibrating Quarry Rock Grizzly screen For Gravel(图4)

Frequently Asked Questions

We are factory.

7-10 days for the stock.15-30 days for the mass production.

30% deposit in TT advance, 70% balance before shipment.

One year. Spare parts for you at lowest cost.

Yes, we can help you set up a complete production line and give you related professional advice. Wehad already build many mining projects in China & Overseas.
