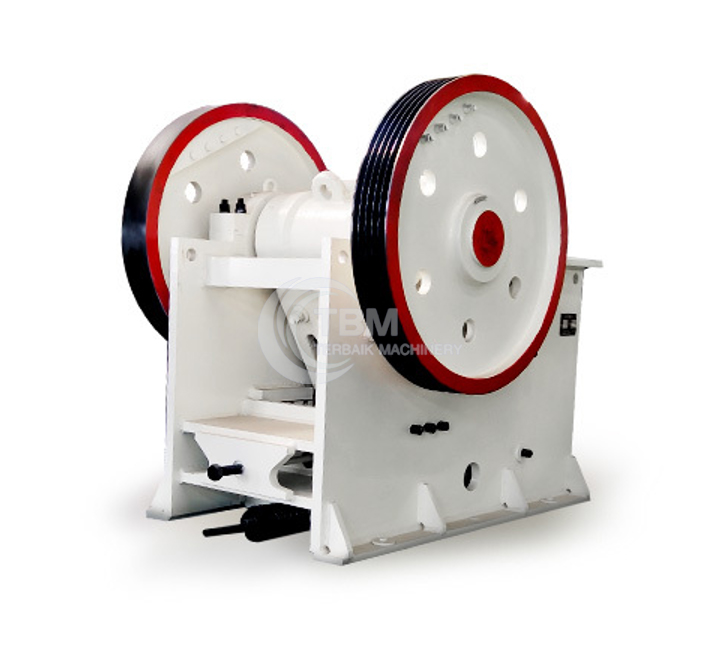

China Hot sale PE Series 250 400 600 900 Jaw crusher

Terbaikmachinery offers Jaw Crushers for reliable crushing solutions in various industries. Jaw Crushers ensure efficient material crushing, enhancing productivity and product quality. Trust Terbaikmachinery for expertly crafted crushing solutions.

Input Size
125-250mm
Capacity
1-1000t/h
Type
Quarry Mining Primary Limestone Jaw Crusher Machine Medium PE600x900 Jaw Crusher Granite Limestone G
WhatsApp Get Quote
China Hot sale PE Series 250 400 600 900 Jaw crusher

Jaw Crusher Introduction

China Hot sale PE Series 250 400 600 900 Jaw crusher

Jaw crusher commonly known as jaw crusher, also known as tiger jaw. The crushing chamber is composed of two jaw plates, the moving jaw and the static jaw, which simulate the movement of the two jaws of animals to complete the material crushing operation. It is widely used in the crushing of various ores and large materials in the mining and smelting, building materials, highways, railways, water conservancy and chemical industries. The maximum compressive strength of the crushed material is 320Mpa.

What are the best-selling models of jaw crushers?

China Hot sale PE Series 250 400 600 900 Jaw crusher(图1)

Advantages of Jaw Crusher

  Unique Flywheel Design: Reduce vibration effectively, Machine work is stable

  Large Crushing Ratio: low suspension motion mechanism leads to greater crushing ratio.

  Easy To Maintain: Application of high wear-resisting toothed plate, long maintenance period, and cost-saving.

  Low Failure Rate: Reliable performance, optimized design, the low failure rate.

China Hot sale PE Series 250 400 600 900 Jaw crusher(图1)

Exploring the versatility and Benefits of PE Jaw Crushers

Product Features

Adjustable Discharge

Hydraulic system adjusts discharge opening to control product size

Wide Size Range

Produces 3-50mm aggregates in various specifications

Excellent Shape

Cubical shape for high-quality aggregates

Auto Control

PLC control system for automated operation

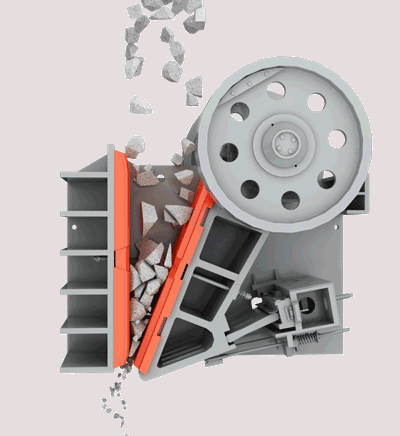

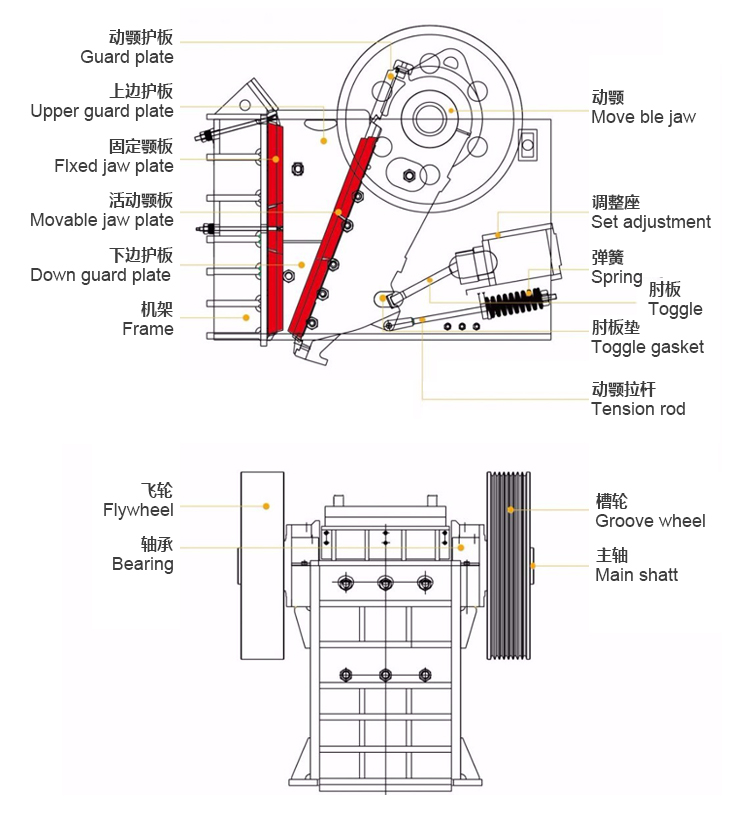

Working principle


    The movable jaw is hung on the mandrel and can swing left and right. When the eccentric shaft rotates, the connecting rod reciprocates up and down, which drives the two thrust plates to also reciprocate, thereby pushing the movable jaw to reciprocate left and right to realize crushing and unloading. This type of crusher adopts a crank double-link mechanism. Although the movable jaw is subjected to a great crushing reaction force, its eccentric shaft and connecting rod are not subjected to much force. Therefore, large-scale and medium-sized machines are often used in the industry. Come to crush hard materials. In addition, when this type of crusher works, the motion trajectory of each point on the movable jaw is an arc centered on the mandrel, the arc radius is equal to the distance from the point to the axis, the upper arc is small, and the lower arc is large. The crushing efficiency is low, and the crushing ratio is generally 3-6. Because of its simple movement trajectory, it is called simple swing jaw crusher.

China Hot sale PE Series 250 400 600 900 Jaw crusher(图1)

How to extend the service life of jaw crusher ?

1. Precautions for jaw crusher installation 2. Precautions for jaw crusher use 3. Maintenance strategy for jaw crusher equipment

Solutions

Mobile Crushing
  • Crawler Jaw Mobile Plant
  • Crawler Cone Mobile Plant
  • Crawler Screen Mobile Plant
  • Mobile Feeder

Suitable for: Quarries, mining, construction waste recycling

Stationary Crushing
  • Jaw Crusher
  • Cone Crusher
  • Vibrating Feeder
  • Vibrating Screen

Suitable for: Large quarries, cement plants, highways

Sand Making Line
  • VSI Impact Crusher
  • Sand Washing Machine
  • Dewatering Screen
  • Fine Sand Recovery

Suitable for: High-quality sand, concrete batching plants

Technical Specifications

Model

Feed
opening

(mm)

Max.
feeding size

(mm)

Adjusting
range of discharge opening

 (mm)

Processing capacity

(m/h)

Motor power

(Kw)

Total weight

(t)

PE-250×400250×40021020-603-13152.8
PE-400×600400×60034040-9010-35307
PE-500×750500×75042550-10025-605510.6
PE-600×900600×90050065-18030-8555-7515.5
PE-750×1060750×106063080-18072-15090-11028
PE-800×1060800×1060680100-20085-14390-11030
PE-870×1060870×1060750170-270145-23590-11030.5
PE-900×1060900×1060780200-290170-25090-11031
PE-900×1200900×120078095-255100-240110-13249
PE-1000×12001000×1200850195-280190-275110-13251
PE-1200×15001200×15001020150-300250-500160100.9
PEX-150×750150×75012018-485-16153.5
PEX-250×750250×75021025-608-22224.9
PEX-250×1000250×100021025-6010-3230-376.5
PEX-250×1200250×120021025-6013-38377.7
PEX-300×1300300×130025020-9010-657511

Exploring the Versatility and Benefits of PE Jaw Crushers

If you needs others stone crusher , it is also avaiable

China Hot sale PE Series 250 400 600 900 Jaw crusher(图1)

Frequently Asked Questions

We are factory.

7-10 days for the stock.15-30 days for the mass production.

30% deposit in TT advance, 70% balance before shipment.

One year. Spare parts for you at lowest cost.

Yes, we can help you set up a complete production line and give you related professional advice. Wehad already build many mining projects in China & Overseas.
