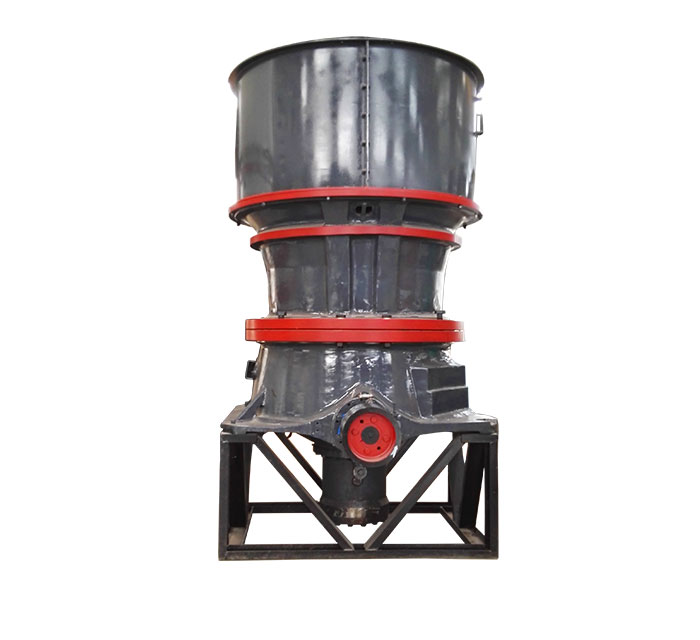

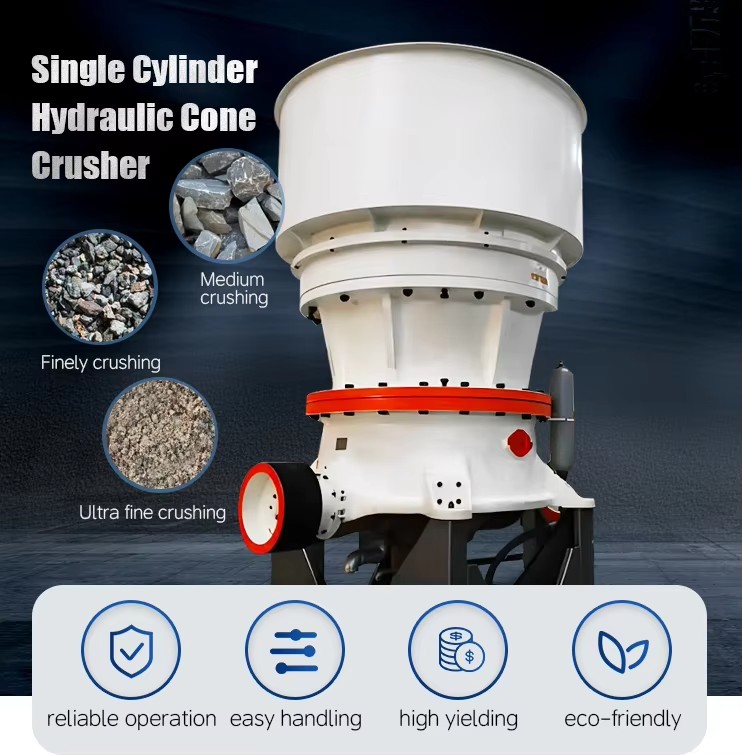

Single Cylinder Hydraulic Cone Crusher Specifications:
| Model | DP100S | DP100 | DP430S | DP430 | DP440S | DP440 | DP660S | DP660 | DP870 |
| Weight (kg) | 7350 | 5700 | 12000 | 9200 | 19300 | 14300 | 35700 | 26800 | 49800 |
| Maximum inspection weight (kg) | 2800 | 2000 | 5200 | 3000 | 8200 | 4800 | 16800 | 8600 | 13200 |
| Power(kW) | 90 | 90 | 132 | 132 | 220 | 220 | 315 | 315 | 500 |
| Model | Cavity | Max feeding size (mm) | The capacity of Corresponding Discharge opening size（t/h） |
| 19mm | 22mm | 25mm | 29mm | 32mm | 35mm | 38mm | 41mm | 44mm | 48mm | 51mm | 54mm | 60mm | 64mm | 70mm | 76mm |
| DP100S | M Medium | 170 | 85-90 |
| 105-145 | 125-175 |
| 145-200 |
| 165-215 |
|
|
|
|
|
|
|
|
| DP430S | EC Supre Coarse | 360 |
|
| 126 | 138-173 | 147-230 | 156-293 | 165-310 | 174-327 | 183-344 | 196-306 | 205-256 |
|
|
|
|
|
| C Coarse | 300 |
| 108 | 116-145 | 127-199 | 135-254 | 144-270 | 152-285 | 161-301 | 196-264 | 108 |
|
|
|
|
|
|
| MC Medium Coarse | 235 | 91 | 98-123 | 106-166 | 116-218 | 124-232 | 131-246 | 139-261 | 147-275 | 154-241 | 165 |
|
|
|
|
|
|
| DP440S | EC Super Coarse | 450 |
|
|
|
|
| 267 | 282-353 | 298-446 | 313-563 | 334-601 | 350-524 | 365-456 |
|
|
|
|
| C Coarse | 400 |
|
|
| 225 | 239-299 | 254-381 | 269-484 | 284-511 | 298-448 | 318-398 | 333 |
|
|
|
|
|
| MC Medium Coarse | 300 |
|
| 195 | 214-267 | 228-342 | 242-435 | 256-461 | 270-486 | 284-426 | 303-378 | 317 |
|
|
|
|
|
| DP660S | EC Super Coarse | 560 |
|
|
|
|
|
|
| 349 | 368-460 | 392-588 | 410-718 | 428-856 | 465-529 | 489-978 | 525-1050 | 562-983 |
| C Coarse | 500 |
|
|
|
|
|
| 318 | 336-420 | 353-618 | 376-753 | 394-788 | 411-823 | 446-892 | 469-822 | 504-631 |
|
| Model | Cavity | Max feeding size (mm) | The capacity of Corresponding Discharge opening size |
| 6mm | 8mm | 10mm | 13mm | 16mm | 19mm | 22mm | 25mm | 32mm | 38mm | 44mm | 51mm | 57mm | 64mm | 71mm |
| DP100 | M Medium | 105 |
|
| 55-60 | 60-85 | 65-95 | 70-100 | 75-90 |
|
|
|
|
|
|
|
|
| MF Medium fine | 85 |
| 45-50 | 50-70 | 55-80 | 60-85 | 65-90 | 65-80 |
|
|
|
|
|
|
|
|
| EF Super fine | 32 | 40-55 | 40-60 | 45-70 | 55-75 | 60-75 | 65 |
|
|
|
|
|
|
|
|
|
| DP430 | EC Super coarse | 185 |
|
|
| 69-108 | 75-150 | 80-161 | 86-171 | 91-182 | 104-208/ | 115-208 |
|
|
|
|
|
| C Coarse | 145 |
|
|
| 66-131 | 71-142 | 76-152 | 81-162 | 86-173 | 98-197 | 109-150 |
|
|
|
|
|
| MC Medium coarse | 115 |
|
| 57 | 62-140 | 67-151 | 72-162 | 77-173 | 82-184 | 93-145 |
|
|
|
|
|
|
| M Medium | 90 |
|
| 64-84 | 69-131 | 75-142 | 80-152 | 86-162 | 91-154 | 104 |
|
|
|
|
|
|
| MF Medium fine | 75 |
| 61 | 65-106 | 70-115 | 76-124 | 81-126 | 87-114 | 92 |
|
|
|
|
|
|
|
| F Fine | 50 | 48-78 | 51-83 | 54--88 | 59-96 | 63-103 | 68-105 | 72-95 | 77 |
|
|
|
|
|
|
|
| EF Super Fine | 35 | 70-90 ,80％<5mm-5.6mm |
| DP440 | EC Super coarse | 215 |
|
|
|
| 114-200 | 122-276 | 131-294 | 139-313 | 159-357 | 175-395 | 192-384 |
|
|
|
|
| C Coarse | 175 |
|
|
| 101 | 109-218 | 117-292 | 125-312 | 133-332 | 151-378 | 167-335 | 183-229 |
|
|
|
|
| MC Medium coarse | 140 |
|
|
| 97-122 | 105-262 | 113-282 | 120-301 | 128-320 | 146-328 | 161-242 |
|
|
|
|
|
| M Medium | 110 |
|
|
| 117-187 | 126-278 | 136-298 | 145-318 | 154-339 | 175-281 | 194 |
|
|
|
|
|
| MF Medium fine | 85 |
|
| 114 | 124-227 | 134-245 | 144-263 | 153-281 | 163-299 | 186-248 |
|
|
|
|
|
|
| F Fine | 70 |
| 90-135 | 96-176 | 104-191 | 112-206 | 120-221 | 129-236 | 137-251 | 156-208 |
|
|
|
|
|
|
| EF Super fine | 38 | 100-125, 80％<6mm-7.5mm |
| DP660 | EC Super coarse | 270 |
|
|
|
| 177 | 190-338 | 203-436 | 216-464 | 246-547 | 272-605 | 298-662 | 328-511 |
|
|
|
| CX Super coarse | 235 |
|
|
|
| 174-194 | 187-374 | 200-488 | 212-519 | 242-592 | 268-654 | 293-521 | 323-359 |
|
|
|
| C Coarse | 215 |
|
|
|
| 171-190 | 184-367 | 196-480 | 209-510 | 238-582 | 263-643 | 288-512 | 317-353 |
|
|
|
| MC Medium coarse | 175 |
|
|
|
| 162-253 | 174-426 | 186-455 | 198-484 | 226-552 | 249-499 | 273-364 |
|
|
|
|
| M Medium | 135 |
|
|
|
| 197-295 | 211-440 | 226-470 | 240-500 | 274-502 | 302-403 |
|
|
|
|
|
| MF Medium fine | 115 |
|
|
| 192 | 207-369 | 222-396 | 237-423 | 252-450 | 287-451 | 318-363 |
|
|
|
|
|
| F Fine | 90 |
|
|
| 195-304 | 210-328 | 225-352 | 241-376 | 256-400 | 292-401 | 323 |
|
|
|
|
|
| EF Super fine | 65 |
|
|
| 211-293 | 227-316 | 244-298 | 261-290 |
|
|
|
|
|
|
|
|
| DP870 | EC Super coarse | 300 |
|
|
|
|
|
| 448-588 | 477-849 | 544-968 | 601-1070 | 658-1172 | 725-1291 | 782-1393 | 849-1512 | 906-1331 |
| C Coarse | 240 |
|
|
|
|
| 406 | 433-636 | 461-893 | 525-1018 | 581-1125 | 636-1232 | 700-1357 | 756-1464 | 820-1461 | 876-1286 |
| MC Medium coarse | 195 |
|
|
|
|
| 380-440 | 406-723 | 432-837 | 492-954 | 544-1055 | 596-1155 | 657-1272 | 708-1373 | 769-1370 | 821-1206 |
| M Medium | 155 |
|
|
|
|
| 400-563 | 428-786 | 455-836 | 519-953 | 573-1054 | 628-1154 | 692-1271 | 746-1372 | 810-1248 | 865-1098 |
| MF Medium fine | 100 |
|
|
|
| 379-424 | 407-716 | 434-765 | 462-814 | 527-928 | 852-942 | 638-789 | 702 |
|
|
|
| F Fine | 90 |
|
|
| 357-395 | 385-656 | 414-704 | 442-752 | 470-800 | 535-912 | 592-857 | 649-718 |
|
|
|
|
| EF Medium fine | 80 |
|
| 280-405 | 304-517 | 328-558 | 352-598 | 376-639 | 400-680 | 455-775 | 503-758 | 551-669 |
|
|
|
|

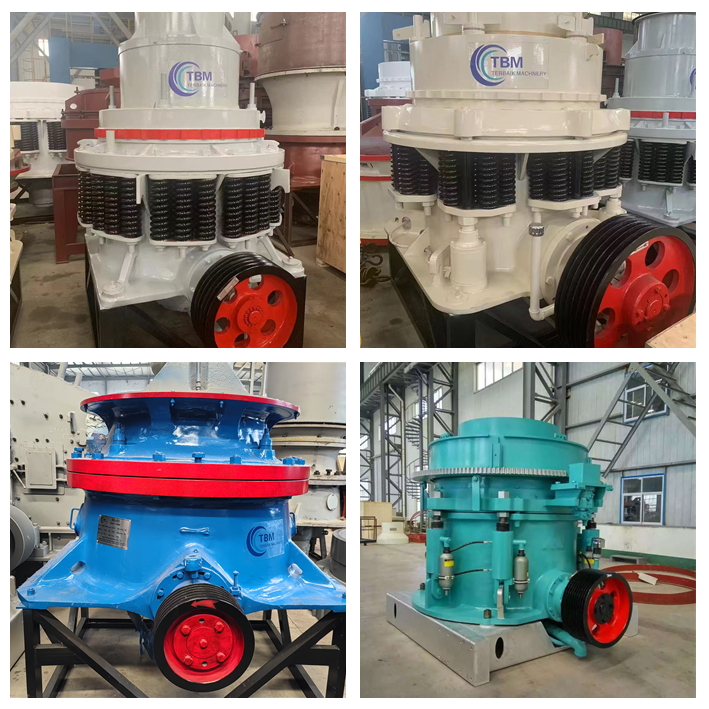

About cone crusher types
1. As the most traditional cone crusher the spring cone crusher is the earliest model used in the market, with relatively low production capacity and high production cost.
2. Hydraulic cone crusher is further divided into three types: full hydraulic, single-bar hydraulic, and multi-cylinder hydraulic.
3. Single-bar hydraulic cone crusher integrates mechanical, hydraulic, and intelligent control in one crushing structure, with a relatively long service life, convenient replacement and maintenance, low failure rate, and high output.
4. Multi-cylinder hydraulic cone crusher increases the number of cylinders on the basis of a single-bar, which is more convenient to adjust and repair, with a relatively longer service life, better discharge quality, and lower cost.
5. A fully hydraulic cone crusher combines the advantages of a single-bar cone crusher and compound cone crusher, adopts specific crushing frequency and eccentricity, has a high content of medium fineness, high production efficiency, and low energy consumption.
6. Compound cone crusher is a type of cone crusher that combines multiple technical advantages.
7. Mobile cone crushers can be divided into spring cone crushers, single-cylinder cone crushers, multi-cylinder hydraulic cone crushers, full hydraulic cone crushers and other types according to the type of cone crusher carried. There are two types of mobile cone crushers: crawler type and head-pulled type, which are easy to move and transfer.
About delivery standards
Terbaik machinery has extremely complete delivery standards, a series of standards and regulations formulated to ensure that the ordered goods can be delivered completely and accurately according to the needs and requirements of customers. These standards usually involve quantity, specifications, quality, packaging, documents and time, etc., to ensure the smooth progress of the delivery process and improve customer satisfaction.
If you needs others stone crusher , it is also avaiable
FAQ:
Q:Are you manufacture or trading company?
A: We are factory.
Q: How long is your delivery time?
A:7-10 days for the stock.15-30 days for the mass production.
Q:What is your payment method?
A:30% deposit in TT advance, 70% balance before shipment.
Q: How long is the warranty? Does your company supply the spare parts?

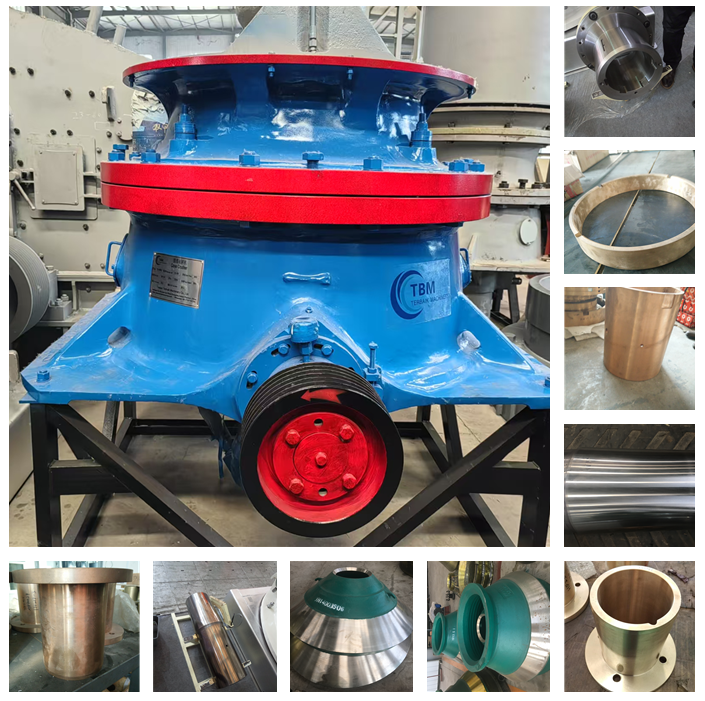

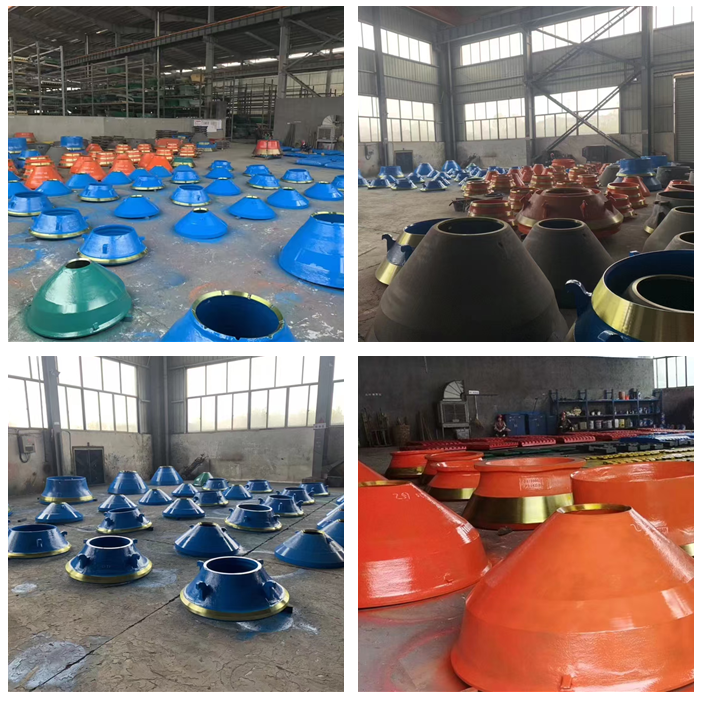

A:One year. Spare parts for you at lowest cost.
Q: lf l need the complete crushing plant can you help us to build it?
A:Yes, we can help you set up a complete production line and give you related professional advice. Wehad already build many mining projects in China & Overseas.
