HZS120 Concrete Batching Plant

Advantages of HZS120 Concrete Batching Plant

Working principle

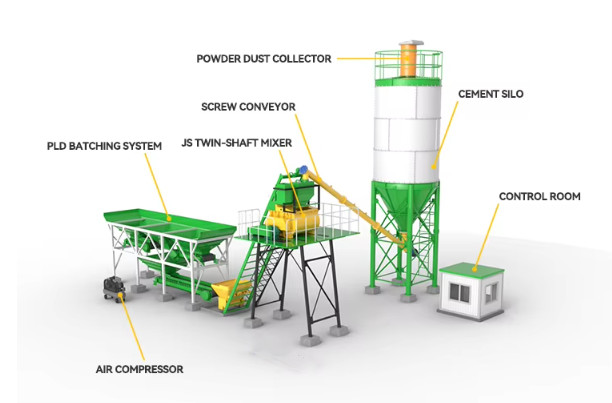

Main components of the system

1.JS2000 concrete mixer

• Shaft end sealing technology effectively prevents soil from entering and facilitates cleaning;

• Anti-sticking shaft technology, reducing the frequency and workload of mainframe cleaning;

• Long service life;

• Easy to operate and high mixing efficiency.

2.Dosing system-PLD3200

• Four aggregate bins, configurable with four types of sand and aggregates

• The volume of each bin can reach 18m³, storing more materials and effectively improving the efficiency of the loader.

• Four weighing hoppers, each aggregate is weighed individually for more accurate batching.

• 1000mm wide belt for high dosing efficiency

3. Weighing system

• It is mainly divided into aggregate weighing, powder weighing and liquid weighing;

• High degree of intelligence, all weighing adopts electronic scale, microcomputer control;

• High metering accuracy with buffer device and automatic compensation;

• Aggregate weighing accuracy is controlled at ±2%;

• Weighing accuracy of cement, powder, water and admixture reaches ±1%.

4. Conveying system-aggregate belt conveyor

• Aggregate belt conveyor has small inclination angle, gentle arrangement and high conveying efficiency;

• Single door discharge opening, single cylinder discharge door, smooth material flow;

• Octagonal discharging hopper, unique variable diameter discharging port design, stable and smooth conveying;

• The aggregation process is fully automated and efficient.

5. Material storage system - cement silo

• Powders are stored in fully enclosed steel silos;

• Additives are stored in steel containers;

• Good storage.

6. Electronic control systems

• Intelligent operating system, automatic system diagnosis, stable and reliable;

• Authorization control can be set up according to customer requirements;

• The operator's entire operation can be recorded;

• Scheduled production orders can be set at any time;

• Easy to operate, friendly interface, can fully use the mouse to operate the system;

• Improve production logs and record abnormalities to ensure production safety;

• Reliable and efficient production management system;

• Computer hot backup function.

7. Dust removal system

• Critical dust removal techniques based on timing control;

• Equipped with an intelligent pressure safety system;

• The dust collector and the aggregate buffer hopper are of integrated design with high dust removal efficiency;

• Material yard, batching silo loading point using spraying system to reduce dust;

• The powder bin adopts imported dust collector.

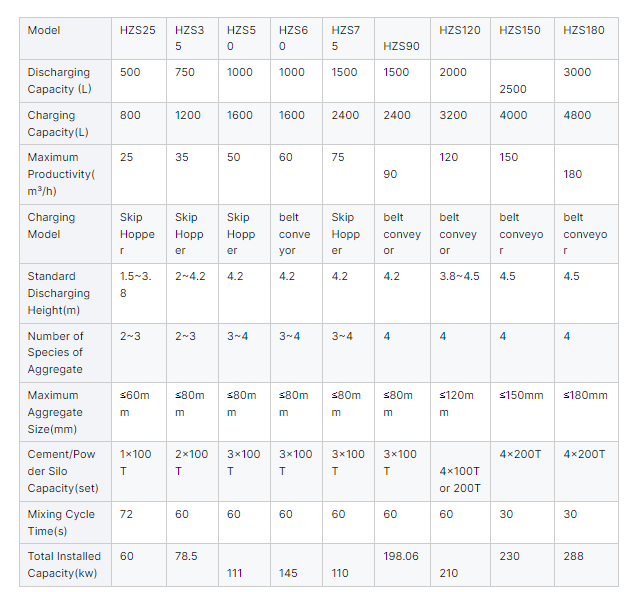

Technical Specifications
